Installation and Configuration of filebeat and logstash

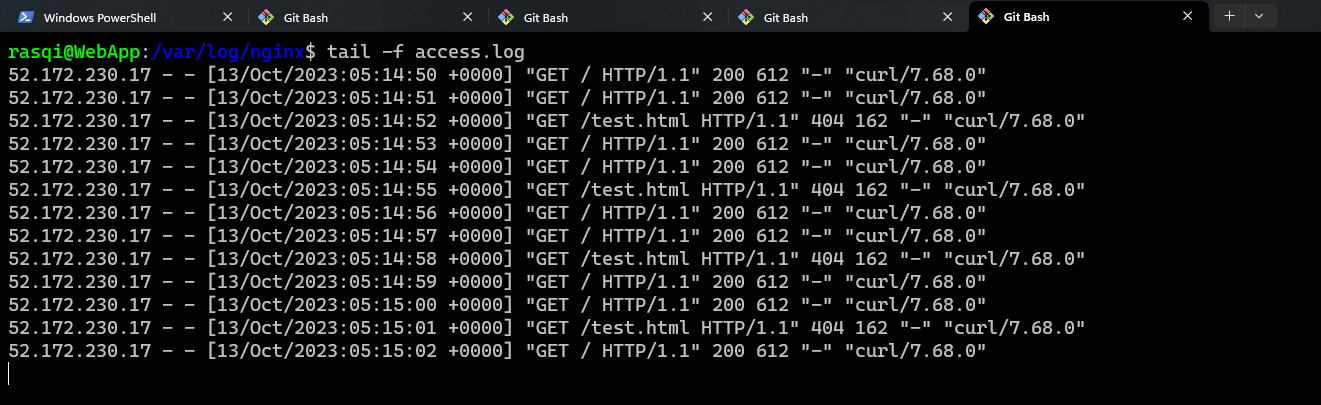

Log parsing means that the logs which are generated are in text format and if we want to search for something then searching text would be very hectic work so inorder to make it understandable, we convert these logs into some format so that they can be easily queryable in this case it’s json format
If the logs generated are already in json format we can directly send them to elasticsearch/elastic cloud no need of logstash

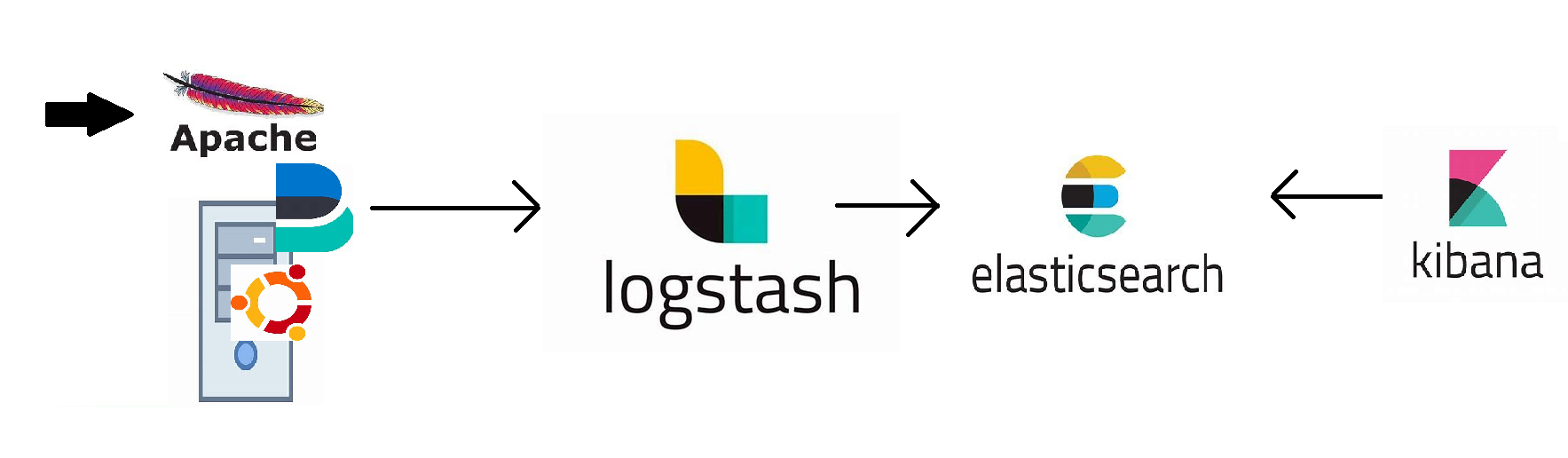

We can configure 2 more servers for elasticsearch & kibana respectively, but I’ll be using Elastic cloud for both of them
1. Beats (Filebeat) Server Configuration
sudo apt update && sudo apt install apache2 -y

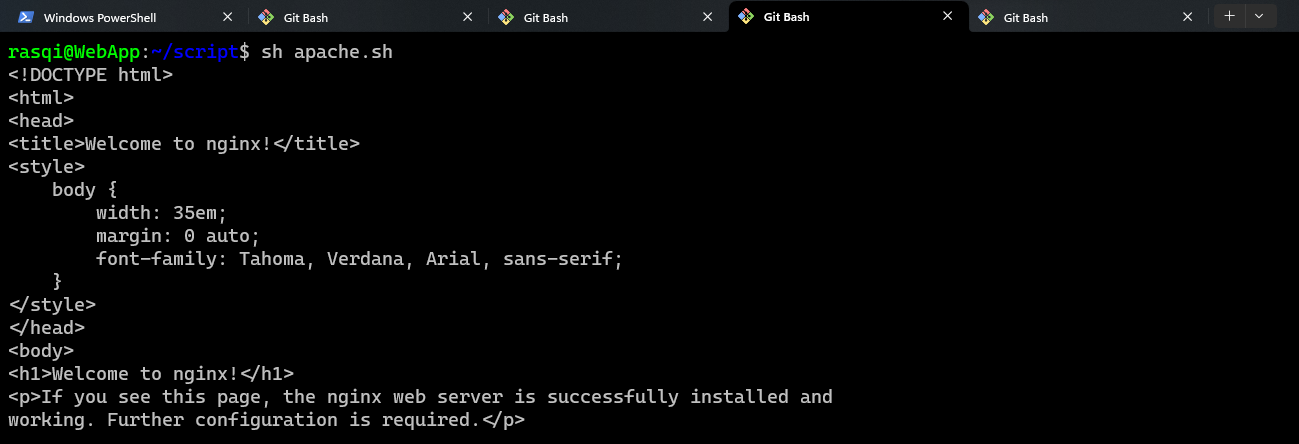

Once the Apache server is setup, we need to generate the traffic so let’s create a small script
- HTTP Status codes
- 1xx => Information
- 2xx => Success
- 3xx => Redirection
- 4xx => Client-side errors
- 5xx => Server-side errors

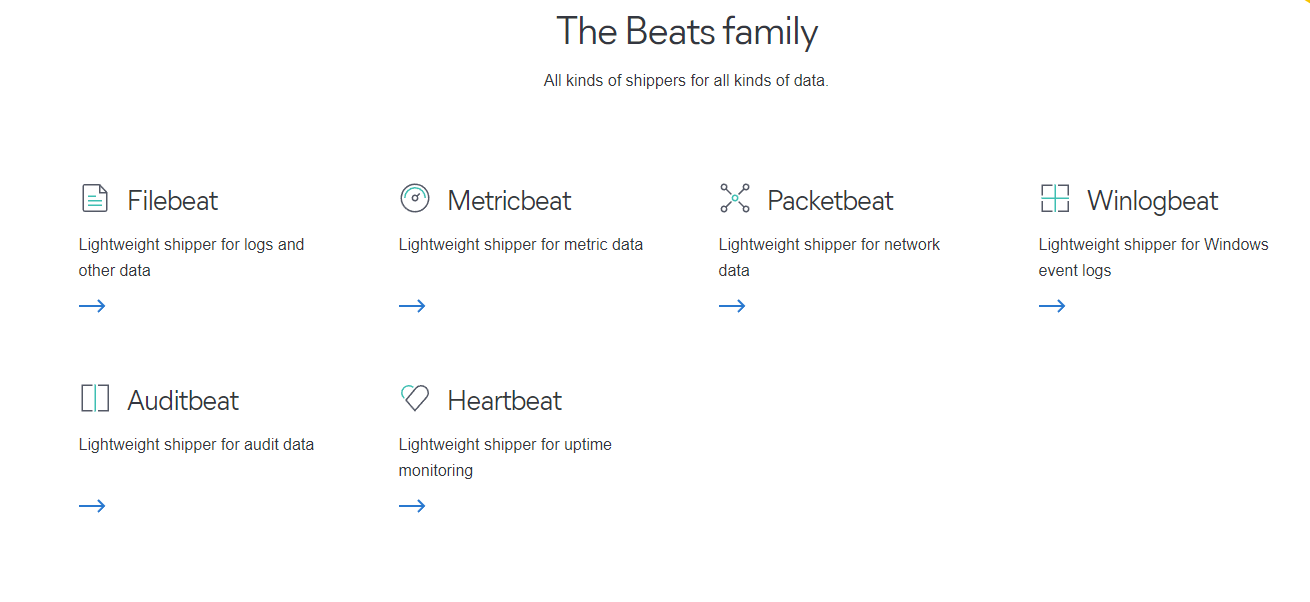

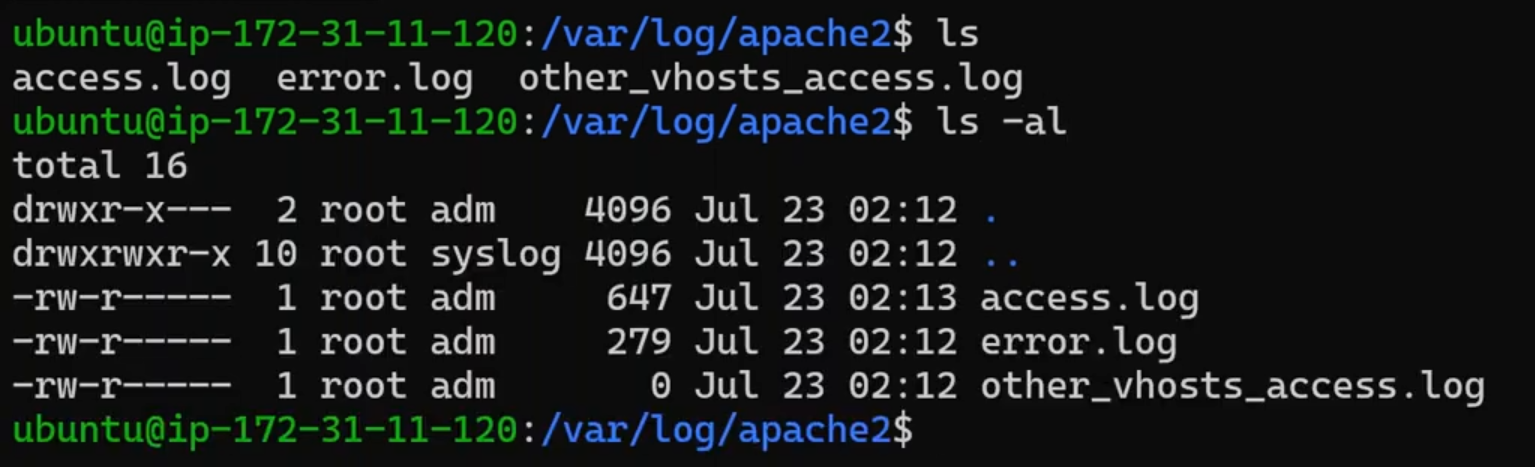

Now we need to setup beats which reads the logs written to file /var/logs/apache2/access.log
sudo apt update
wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo apt-key add -
sudo apt-get install apt-transport-https
echo "deb https://artifacts.elastic.co/packages/8.x/apt stable main" | sudo tee -a /etc/apt/sources.list.d/elastic-8.x.list
sudo apt-get update && sudo apt-get install filebeat
/etc/filebeat/filebeat.yml
# ============================== Filebeat inputs ===============================
filebeat.inputs:
# Each - is an input. Most options can be set at the input level, so
# you can use different inputs for various configurations.
# Below are the input-specific configurations.
# filestream is an input for collecting log messages from files.
- type: filestream
# Unique ID among all inputs, an ID is required.
id: Apache_filestream
# Change to true to enable this input configuration.
enabled: true
# Paths that should be crawled and fetched. Glob based paths.
paths:
- /var/log/apache2/access.log
Changes made in “filebeat.inputs” “Apache_filestream”, “/var/log/apache2/access.log” and “enable input configuration: true”
Always remember output will be sent to either Elasticsearch or Logstash not both at the same time so comment everything in Elasticsearch Output
as we’re dealing with Logstash Output
# ================================== Outputs ===================================
# Configure what output to use when sending the data collected by the beat.
# ---------------------------- Elasticsearch Output ----------------------------
#output.elasticsearch:
# Array of hosts to connect to.
#hosts: ["localhost:9200"]
# Protocol - either `http` (default) or `https`.
#protocol: "https"
# Authentication credentials - either API key or username/password.
#api_key: "id:api_key"
#username: "elastic"
#password: "changeme"
# ------------------------------ Logstash Output -------------------------------
output.logstash:
# The Logstash hosts
hosts: ["10.0.0.4:5044"]
# Optional SSL. By default is off.
# List of root certificates for HTTPS server verifications
#ssl.certificate_authorities: ["/etc/pki/root/ca.pem"]
# Certificate for SSL client authentication
#ssl.certificate: "/etc/pki/client/cert.pem"
# Client Certificate Key
#ssl.key: "/etc/pki/client/cert.key"
Enter the logstash server’s private ip address in hosts: ["10.0.0.4:5044"]
assuming both the filebeat and logstash servers are on same network
Once, the Apache server is up and running, & filebeat is also configured execute the following commands
sudo systemctl daemon-reload
sudo systemctl enable filebeat.service
sudo systemctl start filebeat.service
2. Logstash Server Configuration
sudo apt update
wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo gpg --dearmor -o /usr/share/keyrings/elastic-keyring.gpg
sudo apt-get install apt-transport-https
echo "deb [signed-by=/usr/share/keyrings/elastic-keyring.gpg] https://artifacts.elastic.co/packages/8.x/apt stable main" | sudo tee -a /etc/apt/sources.list.d/elastic-8.x.list
sudo apt-get update && sudo apt-get install logstash
Now we need to create a logstash pipeline to receive the logs from beats (filebeat), transfom the apache logs and then forward it to elastic search
The tested pipeline for transforming apache logs is apache.conf
Now save this apache.conf to /etc/logstash/conf.d/
and then enable and start logstash
/etc/logstash/conf.d/
and each & every file with “.conf” extension present in /etc/logstash/conf.d/
will be executed. If we don’t want a particular file to be executed just change it’s extension & that file will not execute.sudo systemctl daemon-reload
sudo systemctl enable logstash.service
sudo systemctl start logstash.service
